Where Is Air Filter on Furnace: Find It Fast
Learn where the air filter sits on your furnace, how to identify the correct slot, and simple maintenance tips to keep your home's air clean. Practical guidance from Air Filter Zone.
In most furnaces, the air filter sits behind the service panel or blower access door. Open the front cover or metal door, remove the filter, and check the frame for the size and arrow indicating air flow direction. Always power off the furnace first, ensure the area is cool, and verify the slot orientation before inserting a replacement. This quick check gets you set for maintenance or replacement.
Where to start: identifying your furnace type
According to Air Filter Zone, the first step in locating the air filter is to identify your furnace type and access panel arrangement. Most homes feature a blower compartment behind a front service panel. Some units place the filter below the blower or behind a side panel. Knowing whether you have an upflow, downflow, or horizontal furnace helps you predict where the filter slot is most likely to be. If you’re unsure, consult the owner's manual or a quick online diagram for your model. This initial step saves you from forcing panels or damaging components and keeps the discovery process efficient.
Typical locations and orientations
Air filters most commonly sit in one of a few places: directly behind the front intake panel, in a bottom-slot tray, or inside a cabinet door near the blower housing. In upflow models, the slot is usually at the bottom front; for downflow units, it's often at the top rear behind a panel. Horizontal furnaces frequently hide the filter in the side compartment. Look for a rectangular frame that slides in and out, often held by small springs, screws, or a simple retainer. If you spot a grille or a shallow tray, you’re probably near the right area.
Reading the label and slot shape
Once you locate the slot, inspect the frame for obvious cues: an arrow on the filter frame shows airflow direction, and grooves or ridges indicate which side must face the blower. The slot itself may be labeled with words like FILTER or FRAMe, and sometimes the size is printed on the edge of the frame. If the label is missing, measure the slot with a tape measure and match it to standard filter sizes (common sizes include 16x20 and 20x25 inches). Align the new filter with the airflow arrow pointing toward the blower.
Common configurations: top, bottom, and side slots
Furnace configurations vary by age and model. A top-slot is common in some upflow models where the air enters from above; a bottom-slot is common in many horizontal or vertical configurations; and a side-slot appears in compact or newer cabinet designs. In all cases, the filter should slide in smoothly without forcing. If the filter doesn’t fit, recheck the orientation or size and consult the manual. For sealed or hard-to-reach units, professional service may be best to avoid damage.
Safety, maintenance, and replacement basics
Before touching any furnace components, turn off the power at the switch or circuit breaker and let the system cool. Wear gloves to protect your hands from sharp edges and dust. Keep the area clean; take a quick photo of the panel and slot for reference during replacement. When inserting a new filter, ensure the frame sits snugly in the slot and the airflow arrow points toward the blower. Regular checks help maintain indoor air quality and system efficiency.
Quick checks after replacement and common mistakes
After installing a new filter, reseal the panel, restore power, and listen for any unusual noises or vibrations that may indicate a misaligned panel. Common mistakes include installing the filter backward, choosing an incorrect size, or leaving a gap between the filter and frame. Always confirm the seal around the edges and avoid touching the filter media during installation. Regular, careful maintenance reduces dust and improves system performance.
Tools & Materials
- Screwdriver (Phillips #2)(To remove service panel screws)
- Gloves(Protect hands from sharp edges and debris)
- Flashlight(Illuminates dark cabinet corners)
- Measuring tape(Measure the filter slot to confirm size)
- Replacement filter of correct size(Check dimensions on the current filter frame)
- Owner’s manual (optional but helpful)(Model-specific guidance may vary)
Steps
Estimated time: 15-25 minutes
- 1
Power off and locate the service panel
Turn off power to the furnace at the switch or breaker, and open the front service panel to expose the blower area. This prevents electrical shocks and ensures a safe workspace. Look for a rectangular access door or grille.
Tip: Take a quick photo of the panel layout before removal to reference panel orientation. - 2
Remove the panel screws and lower the panel
Use the screwdriver to remove the screws, then gently hinge or lift the panel to reveal the blower housing and filter slot. Do not yank; panels can be delicate.
Tip: Keep screws in a small cup to avoid losing them. - 3
Identify and inspect the filter slot
Locate the filter slot behind the panel. Check for a frame, retainer, or guide rails. Confirm airflow direction by locating the arrow on the frame or slot label.
Tip: If the slot is empty, note the frame orientation for the replacement. - 4
Remove the old filter
Slide the old filter straight out of the slot. Be prepared for a small amount of dust; hold the frame edges to avoid touching the media.
Tip: Dispose of the old filter in a trash bag to minimize dust spread. - 5
Insert the new filter with correct orientation
Slide in the new filter so the airflow arrow points toward the blower. Ensure the edges sit flush in the frame and there are no gaps.
Tip: If the filter is hard to insert, check for frame warping and reattempt with a correctly sized filter. - 6
Close the panel and test the system
Reattach the service panel with screws, restore power, and run the furnace briefly to confirm proper airflow and panel seating. Listen for unusual noises.
Tip: Wipe any dust from the surrounding area and store screws securely.
FAQ
Where is the air filter located on most furnaces?
Most furnaces place the air filter behind a service panel or blower access door. Inspect the panel area for a rectangular frame that slides out.
Most furnaces put the filter behind the front panel; open the panel and slide out the filter.
Can the filter be in the attic or basement utility area?
Yes, some systems in utility closets or basements place the slot in a side, top, or cabinet area. If you don’t see a panel, refer to the manual.
Yes, some models hide the slot in a closet or cabinet near the blower.
What size filter should I buy?
Measure the slot or check the current filter’s edge for the size. Use a standard size if you find matching dimensions.
Measure the slot or look at the edge of the current filter to find the size.
No slot is visible—what now?
If you cannot locate a slot, consult the owner's manual or contact a professional for safe, accurate guidance.
If you can't find a slot, check the manual or call a pro.
How often should I replace the furnace filter?
Replacement frequency depends on usage, pets, and dust. Many homes replace filters regularly to maintain airflow, but adjust to your conditions.
It depends on usage and conditions; adjust as needed.
Is it safe to replace the filter myself?
Yes. With power off and the panel removed, you can replace the filter. Reassemble securely and confirm a snug fit.
Yes—power off first, then replace and reseal.
Watch Video
Quick Summary

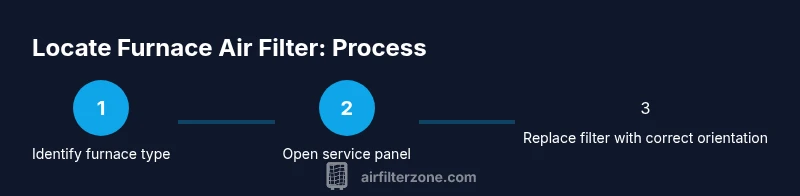

- Identify the furnace type and open the correct access panel
- Know common slot locations and airflow direction markers
- Use the correct filter size and orientation every time
- Power off before handling and reseal the panel after replacement
- Regular checks support indoor air quality and system efficiency
