Air Filter Furnace Location: Find the Right Spot in Your Home

Where the air filter furnace location is typically found

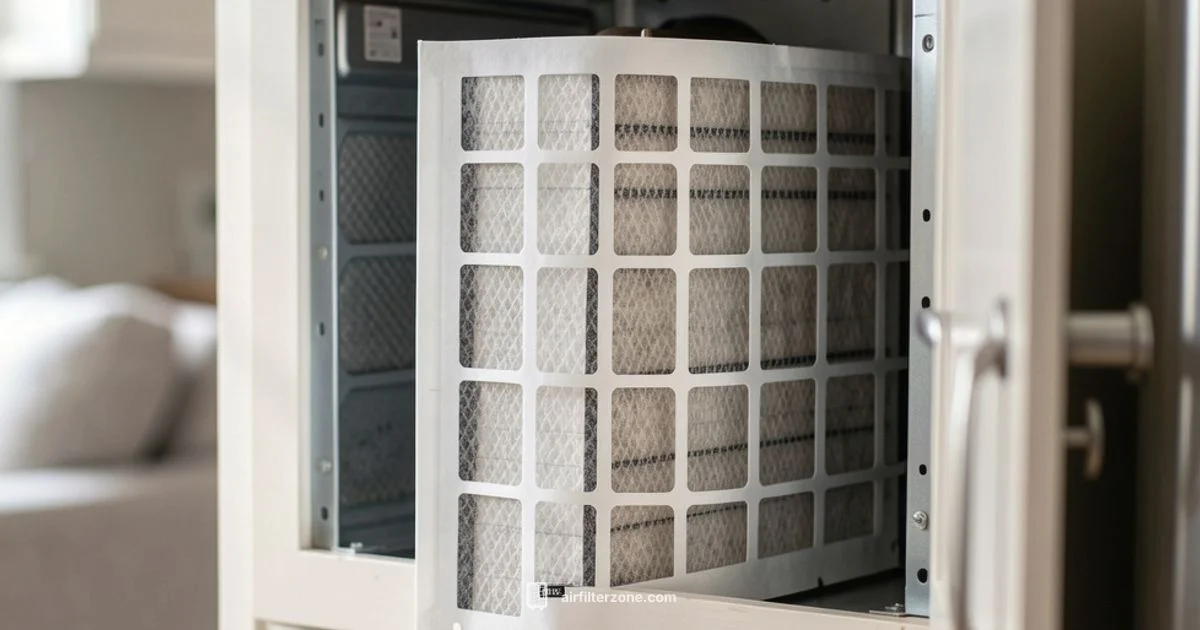

The air filter furnace location is usually in the return air path that feeds air back to the furnace. In many homes, you will find the filter slot behind a perforated panel, grille, or a removable access door on the side or bottom of the furnace cabinet. Some installations tuck the filter into a return air plenum just ahead of the blower. The exact spot varies by model and house layout, but the basic principle is the same: air enters through the filter, gets cleaned, and then moves into the furnace for heating or cooling. When you open the access area, you should see a shallow frame or a slot designed to hold a rectangular filter. Measuring the slot to confirm the right size is a critical first step.

For homeowners, this location is often in plain sight in a utility closet, basement, or garage, but some newer or compact systems keep the filter behind a panel or inside a side compartment. If you cannot find it after a quick visual scan, consult the furnace manual or look up your model online using the serial number. The key is to identify the air intake path and follow it to the filter slot. This is a central part of understanding the air filter furnace location and how to maintain it over time.

Common locations for different furnace setups

Different furnace configurations place the filter in slightly different positions. In floor-standing gas or oil furnaces, the filter is often found in a bottom panel or a front-access slot that’s easy to reach from the living space. Some furnaces have a return air duct with a filter built into the ductwork, so you might need to inspect the duct near the thermostat or where the ductwork meets the furnace. Electric furnaces frequently place the filter in a cabinet-side slot or a slide-out frame behind a small door. In packaged units or units located in attics, the filter may be in a dedicated compartment on the exterior side of the housing. Regardless of type, the filter is always positioned in the return path, so air moves through it before entering the blower. If you have a unique setup, a quick photo of the cabinet can help you locate the slot when you search online for your model.

Why the exact location matters for performance and safety

Where the filter sits directly affects airflow, energy efficiency, and indoor air quality. A filter that is hard to reach or poorly seated can create gaps that let unfiltered air bypass the filtration stage, reducing effectiveness and increasing strain on the blower. Correct placement also aligns the airflow arrows on the filter frame with the furnace, ensuring proper operation and minimizing noise. Choosing the right filter size and MERV rating for your system helps balance filtration with airflow. When you locate the filter, verify that it sits snugly in its frame and that the panel around it seals properly to prevent air leaks. Properly locating and replacing filters reduces dust, allergens, and wear on the equipment, supporting both comfort and longevity.

How to identify the correct side and orientation

Most filters have arrows on the frame indicating the direction of airflow. This arrow should point toward the furnace or deeper into the system, following the path air takes as it moves from return duct to blower. If arrows are not visible, check the furnace manual or the sticker on the inside of the access panel for orientation guidance. When you remove the existing filter, note its position and the way it sits in the frame—some filters have a raised edge that fits into a groove. In any case, always replace the filter so the arrows point in the direction of the airflow, from the return duct toward the furnace. This simple check is essential to the air filter furnace location process and to maintaining clean, efficient operation.

Step by step locating and replacing the filter safely

1. Turn off the furnace or switch off the circuit breaker to the unit to reduce risk. 2) Open the access panel or cabinet door to reveal the filter slot. 3) Remove the old filter carefully, noting its orientation and size. 4) Clean the slot if dust has accumulated around the frame. 5) Insert a new filter of the same size, ensuring the arrows point toward the furnace. 6) Reseat the panel securely and restore power. 7) If you use a reusable filter, wash and dry it according to the manufacturer’s instructions before reinserting. 8) Set a reminder to replace or clean the filter at the recommended interval based on usage and environment. Following these steps keeps the air filter furnace location functional and helps sustain good air quality and system efficiency.

Troubleshooting common challenges with locating the filter

If you have a sealed cabinet or a unit with limited space, the filter might be located behind a hidden panel or an inaccessible area. In such cases, refer to your model’s manual or look up the exact location by model number online. Fire-rated or high-efficiency systems may have specialized housings that require careful handling. If the return duct is inside a wall cavity, you may need to gently remove a grill or trim panel to access the slot. For older units, the filter location can also be behind the blower housing, requiring a more careful disassembly. Always ensure the power is off before attempting any access and avoid forcing panels or frames. If you feel unsure, contact a qualified technician to locate and replace the filter safely.
