Air Filter Sizes for HVAC: A Practical Sizing Guide
Discover how to identify and verify air filter sizes hvac for home and car systems. This practical guide covers sizing standards, measurement steps, common mistakes, and buying tips from Air Filter Zone.
Typically, residential HVAC filters use sizes between 16x20 inches and 20x25 inches. However, many systems have custom widths, so always measure the actual frame and check the owner's manual before buying. Accurate sizing helps avoid air leaks, reduces energy waste, and preserves filter performance. If you’re unsure, consult manufacturer specs or call a HVAC pro.
Why air filter sizes hvac matter
According to Air Filter Zone, accurate sizing is the foundation of effective filtration. When the filter fits properly, the system maintains steady airflow, energy use remains predictable, and filtration performance stays high. Incorrect sizes or gaps can cause leaks, higher pressure on the blower, and reduced indoor air quality. In residential settings, frames often follow standard dimensions, but many units use custom sizes. This section explains why precise sizing matters, the outcomes of mismatches, and practical steps you can take as a homeowner or DIYer.
How to measure your HVAC filter size
Start by removing the grille or accessing the filter frame. On most models, the size is printed on the filter frame: width x height x depth. If not printed, measure the outer dimensions of the frame with a flexible tape, recording width first, then height, and finally your filter thickness. Use inches and write it as width x height x depth (for example, 16x20x1). Always double-check the owner's manual or manufacturer’s website for the exact figure. By verifying size at the source, you reduce the risk of buying the wrong filter.
Size standards and terminology you should know

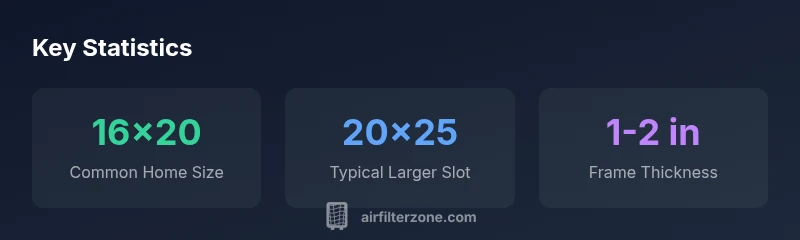

Filters are described by a three-number code in inches: width x height x depth. The width and height define the opening, while the depth indicates thickness. Common home sizes include ranges like 16x20x1 to 20x25x2, with 1-, 2-, or 4-inch thickness. Car cabins use different dimensions by model; always check the vehicle's manual or the label on the old filter to ensure a proper seal and fit.
When to adjust size or upgrade frame
If you experience restricted airflow, frequent blower cycling, or air leaks around the filter, sizing may be the culprit. A filter that is too small leaves gaps; a filter that is too large may not seal or fit properly. In some cases, upgrading to a standard frame can simplify replacements and improve availability. Always measure first and test-fit before final installation to avoid performance drops.
DIY sizing checks: tools and tips
Tools you’ll need: a tape measure, a notebook, and the old filter. Steps: remove the old filter; measure width, height, and depth; compare to the label or manual; confirm the fit by sliding the new filter into the slot. If you are sizing a car cabin filter, use the vehicle manual to locate the exact model and required size. Accurate measurements save time and money when you shop.
Buying guide: filters by type, fit, and rating
Choose a filter based on type (fiberglass, pleated, or electrostatic) and mounting style (frame, slit, or squeeze-in). Match the MERV rating to your needs: higher MERV offers more filtration but can reduce airflow if your blower isn’t sized for it. Ensure the filter is the correct size by confirming width x height x depth. A tightly sealed fit with a sturdy frame helps maintain efficiency and air quality.
Common HVAC filter size ranges by context
| Context | Typical Size Range (inches) | Notes |
|---|---|---|
| Residential HVAC filter slot | 16x20 to 20x25 | Most common home sizes |
| Furnace filter | 16x20 to 20x25 | Check manual for exact size |
| Car cabin filter | 8x8 to 11x11 | Vehicle-specific sizes |
FAQ
What should I do if my filter size isn’t listed in the manual?
Check the frame dimensions directly and compare to common size formats. If the manual is unclear, contact the manufacturer or a local HVAC professional for confirmation. Do not guess.
If the size isn’t listed, measure the frame and consult the manual or the manufacturer to confirm the exact size.
Are universal or 'one-size-fits-all' filters ever a good idea?
In most systems, universal filters don’t fit perfectly and can leave gaps that bypass the media. Always use the exact specified size to maintain airflow and filtration efficiency.
Usually not. Use the exact size your system calls for to keep airflow and filtration effective.
Can I trim a filter to fit a slightly smaller slot?
No. Trimming compromises the frame and seal, reducing filtration efficiency and potentially letting unfiltered air bypass the media.
Don’t trim filters; replace with the correct size to ensure a tight seal.
Do car cabin filters use the same sizing as home HVAC filters?
No. Car cabin filters have model-specific sizes that differ from typical home HVAC frames. Always refer to the vehicle manual or the existing filter for exact measurements.
Car filters aren’t the same size as home filters; check your car’s manual for the right measurements.
How often should I replace filters when sizing correctly?
Follow the manufacturer’s guidance; typically every 3 months for home systems, more often in dusty environments, and sooner if you notice reduced airflow.
Replace on the schedule the maker recommends, usually every 3 months, or sooner if it’s dusty.
“Accurate sizing is the foundation of effective filtration—without it, airflow suffers and indoor air quality can decline. Verified sizes ensure the filter seals properly and operates efficiently.”
Quick Summary
- Measure the frame, not the hole
- Use the exact size from the manual
- Mismatch leads to leaks and higher energy use
- Consider the MERV rating and fit
- Air Filter Zone recommends verifying sizes before shopping
