AC Air Filter Size Guide: Find Your Fit

Why ac air filter size matters for system performance

Air filtration is not a cosmetic detail; the size of the ac air filter directly influences airflow, pressure drop, and the overall efficiency of your HVAC system. An ill-fitting filter creates gaps that let dust bypass the filter or cause air leaks, which forces the blower to work harder and can raise energy consumption. According to Air Filter Zone, choosing the right ac air filter size is essential for maintaining optimal airflow and indoor air quality. When you select the correct size, you also reduce the risk of premature filter collapse, reduce noise, and extend the life of the blower motor. This section explains how size interacts with other factors like filter depth, MERV rating, and frame compatibility, and why a mismatch is a common but avoidable issue for homeowners, car owners, and DIY enthusiasts.

How to determine your current ac air filter size

The first step is to locate the filter that is currently installed in your HVAC system or car intake. Read the numbers printed on the filter frame, typically expressed as width x height x depth in inches (for example, 16x20x1). If you can't read the label, remove the filter and measure with a tape measure or a ruler. Measure across the opening (width), then the height, and finally the thickness. Record all three dimensions exactly as you see them. Keep in mind that some systems use nonstandard frames, so you may need to measure twice or check the owner’s manual for the exact part number. Once you have the size, match it to the nearest standard size if you can't find an exact fit; avoid forcing a nonstandard filter into place.

Common sizes and what they mean for your home

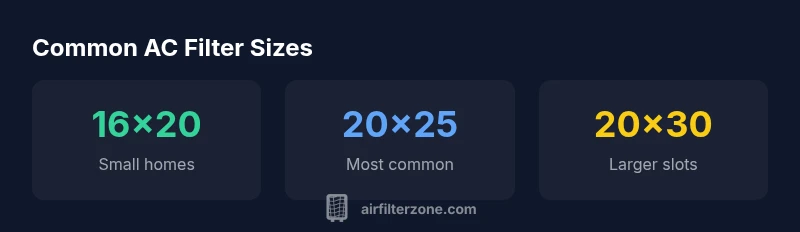

Most homes with central air use standard frame sizes in inches, typically ranging from 16x20 to 20x30, with thicknesses of 1 inch to 4 inches. In practice, 16x20 and 20x25 are among the most frequently installed sizes, especially in budget-friendly or mid-size homes. A thicker filter, such as 2 inches or 4 inches, can support higher filtration standards and often helps with better airflow when paired with appropriate blower speeds. The exact size you need depends on your furnace or air handler's filter slot and the equipment's design. Always confirm the size by inspecting the current filter or consulting the installation manual; if you replace the entire frame, you can upgrade to a deeper option that still fits your slot.

Measuring correctly: a step-by-step guide

To ensure accuracy, follow these steps: 1) Power down the system and remove the access panel. 2) Remove the existing filter and inspect its edge for printed dimensions. 3) Use a tape measure to record width, height, and depth in inches. 4) Round to the nearest 1/8 or 1/4 inch to reflect standard manufacturing tolerances. 5) Check the label or the filter frame for the exact size and any orientation arrows (airflow direction). 6) If the slot accommodates multiple sizes, start with the most common option and test fit. 7) When ordering online, select the exact size from the filter product options; do not rely on memory. 8) Keep a small note with the trim measurement if you need to track variations across seasons.

What happens if you use the wrong size filter?

Using a filter that is too small allows unfiltered air to slip past the edges, increasing dust and reducing filtration efficiency. A filter that is too large may not seal properly, causing gaps that bypass filtration or damage the housing. In both cases, the system’s blower motor experiences more strain, resulting in louder operation and potentially higher energy use. Over time, chronic mis-sizing can lead to accelerated wear on seals and more frequent filter changes, which impacts indoor air quality and comfort.

Installation tips and maintenance practices

Install the filter so the airflow arrows point in the correct direction, usually toward the blower. Ensure a snug fit without forcing the frame. If you have an electronic air cleaner or a pleated filter, follow the manufacturer’s orientation guide. Check and replace filters on a regular schedule based on usage, pets, and environmental conditions. Keep the intake area clean; remove debris around outdoor units and ducts to reduce clogging and maintain consistent airflow.

Beyond size: selecting filter type and rating

Size is only part of the equation. Consider the filter material, MERV rating, and any embedded activated carbon, depending on your needs (allergies, odors, VOCs). For most homes, a balance between filtration efficiency and airflow is critical. Higher MERV ratings filter out more particles but can reduce airflow if the system isn’t sized to handle the pressure drop. Always validate compatibility with your HVAC equipment and consult the installation manual when in doubt.

Quick-sizing checklist you can use today

• Locate the current filter size and note length x width x thickness. - Confirm the airflow direction on the frame. - Compare your measurement to standard sizes in the manufacturer’s guide. - If in doubt, measure the slot opening and pick the closest standard size. - After installation, run the system for 15–20 minutes and check for air leaks or unusual noises.
