How to Find Air Filter Size: A Practical Guide
Master the process of identifying air filter size for HVACs and car cabins with step-by-step measurements, size formats, and buying tips to avoid common sizing mistakes.
To find air filter size, locate the filter housing, remove the current filter, and read the size printed on the frame. If the print is faded, measure the opening in inches: width x height x depth. Record the exact dimensions and use the same size when purchasing a replacement, matching orientation and thickness.
What does air filter size mean?
Understanding the term “air filter size” is essential for a proper seal and efficient filtration. In most homes and vehicles, size refers to the exact frame dimensions that fit inside the slot (width × height × depth). The thickness (or depth) matters for how the filter sits in the housing and how much media is behind the frame. When you know the correct size, you reduce the risk of leaks and bypass that can compromise air quality. According to Air Filter Zone, correct sizing is as much about fit as it is about selecting the right media, such as pleated vs. flat panel designs. In practice, the size you use should match the housing opening and the filter’s own dimensions—not a neighboring standard that looks similar. This ensures a reliable seal, proper airflow, and predictable performance. As you’ll see, the size can appear in several formats, and knowing how to read those formats will save you time in the store and during replacements.
Why size accuracy matters in different settings
The emphasis on precise sizing applies across home HVAC systems, apartment through-wall units, and cabin air filters in cars. A filter that’s too small will float and leave gaps, while a filter that’s too large may jam the slot or warp the frame. Accurate sizing supports consistent airflow, reduces strain on fans, and helps maintain energy efficiency. Air Filter Zone's guidance underscores a practical approach: verify the exact frame dimensions before buying, and never assume a “close enough” size will perform equivalently. This is especially important when you replace multiple filters in a system that shares a single blower.
Common size formats you'll encounter
Most filters use a width × height × depth format, written as 16x20x1, 20x25x1, or similar combinations. Some filters show only two numbers if the depth is a standard sleeve, while others display only a single dimension for slide-in slots. In automotive cabins, you may see metric measurements or model-specific codes printed on the frame. The key is to translate whatever format you see into the same three-dimensional footprint as the housing opening. If you ever doubt, measure the slot and compare with the new filter’s stated dimensions. This reduces the likelihood of ordering the wrong item and having to return a product.
How to measure accurately when the print is faded
If the size label is illegible or missing, take precise measurements of the opening. Use a flexible measuring tape, measure the width (left to right), height (top to bottom), and depth (front to back) at multiple points to account for slight squareness variations. Record measurements in inches and round to the nearest 1/16 inch for better compatibility with common replacement filters. Always compare the measured footprint with the filter you plan to install, and verify it matches the housing’s maximum allowable size.
Replacing with the correct size: buying guidance
When you replace, choose a filter that matches the measured dimensions exactly. In addition to size, pay attention to media type (pleated vs. non-pleated) and thickness. A thicker filter may improve capture efficiency but can restrict airflow if the blower is undersized for the extra resistance. If unsure, consult the system or vehicle manufacturer guidance or seek a filter with a similar MERV rating and media type to your prior choice. Recording the exact size helps you avoid the common mistake of swapping with a nearly similar but non-identical footprint.
Special cases and edge situations
Some older homes or compact living spaces use nonstandard or custom sizes. In such cases, you may need to order a cut-to-fit module or an adapter kit. For car cabins, organizers and dealers often provide exact replacement sizes for popular models; cross-check against your measurement and the vehicle’s manual. If you encounter embedded or printed codes, document them and compare with available replacement options. When in doubt, contact the manufacturer or a trusted retailer, and use the exact numbers as your purchasing guide.
Maintenance checks to ensure ongoing fit
After installation, inspect the seal and ensure the filter sits flush with the frame. A loose seal can cause bypass leaks, reducing filtration effectiveness. Periodically re-check the size if you notice unusual airflow, squeaks from the blower, or unexpected changes in indoor air quality. Keeping a log of measurements and replacement dates helps you maintain consistent performance across seasons and uses. Remember: the best size is the one that fits snugly and maintains proper airflow.
Tools & Materials
- Measuring tape (inches, precision to 1/16 inch)(Flexible tape preferred; ensure it can reach the depth of the slot)
- Current filter from the slot(Used to read printed size or compare against new filter)
- Pen and notebook or digital device(Record measurements and notes)
- Camera or smartphone(Photograph the frame label or slot for reference)
- Helper (optional)(Assist with reading labels and holding the filter steady)

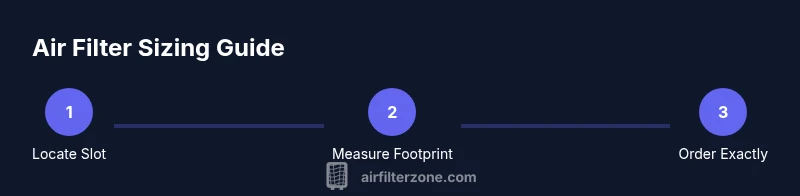

Steps
Estimated time: 15-25 minutes
- 1
Locate the filter housing
Identify where the filter sits in the system (HVAC, car cabin, or other). Open the access panel and remove the cover if needed. This exposes the filter frame so you can inspect the size clearly.
Tip: Take a quick photo of the slot before removing anything to preserve orientation. - 2
Remove the current filter
Carefully slide the filter out without tearing the media. Keep it flat to avoid bending or distorting the frame, which could mislead size reading.
Tip: Note which side faces in or out; some slots are directional. - 3
Read printed size on the frame
Check the outer edge of the filter frame for a size label such as 16x20x1. If the print is faint, proceed to measure the opening yourself.
Tip: If a label is present but damaged, rely on measurements instead to ensure accuracy. - 4
Measure the opening if needed
Using a tape measure, determine width, height, and depth of the slot. Measure at multiple points to account for slight unevenness, then average the results.
Tip: Round to the nearest 1/16 inch to align with common replacement filters. - 5
Compare and confirm orientation
Match your measured dimensions to the same three-number format (W×H×D) as the filter you’ll buy. Confirm which side is up by reviewing how the current filter sits in the slot.
Tip: When in doubt, verify by placing the new filter against the slot before purchase. - 6
Record and prepare to purchase
Document the exact size and any relevant details (media type, MERV rating). Use these details when shopping to avoid returns and ensure proper filtration.
Tip: Keep a small pile of replacement filters in the expected sizes for quick swaps.
FAQ
Why is using the correct filter size important?
Correct size ensures a proper seal, consistent airflow, and effective filtration. An ill-fitting filter can cause leaks and reduced performance.
A good fit seals the slot and keeps airflow going, so you get the filtration you expect.
Can I use a different size if the exact one isn’t available?
If you can't find the exact size, avoid forcing a different footprint. Look for the closest match in width and height and consult the manufacturer or a professional before using a nonstandard size.
If you can't find the exact size, don't force it. Check with a pro before using a different size.
How often should I measure to ensure accuracy?
Measure once before buying, then re-check if you notice changes in airflow, noise, or air quality. For systems in different seasons, re-checking every 6-12 months is a good practice.
Measure once, re-check if things change, like airflow or odors.
What if the size label is unreadable?
Use direct measurements of the slot (width × height × depth) and compare to product specifications. Photograph the area for reference when ordering replacements.
If you can't read the label, measure the slot and match those numbers to a replacement.
Is there a universal filter size for all cars?
No universal car filter size exists. Cabin filters vary by model and year, so always verify the exact dimensions and fitment for your vehicle.
There isn’t a universal car filter size; check your model-year specifics.
Watch Video
Quick Summary
- Know where to locate the size on the filter frame.
- Measure width, height, and depth accurately.
- Match the exact size footprint and thickness when buying.
- Record measurements to simplify future replacements.
