Air Filter 3D Print: DIY Filtration Housings Guide
Learn to design and 3D print safe, effective air filter housings for home and car use. This Air Filter Zone guide covers materials, fit, sealing, testing, and maintenance for reliable DIY filtration.
By the end of this guide you will be able to design and 3D-print a compatible air filter housing, select safe materials, verify fit, and perform basic filtration tests for home or vehicle use. You'll understand design constraints, print settings, and post-processing steps to avoid leaks and degraded filtration. This article also covers safety reminders and common implementation pitfalls.
Why 3D-Printed Filtration Housings Are Worth Considering
For homeowners and DIY enthusiasts, a 3D-printed air filter housing can offer a customizable fit, rapid iteration, and potential cost savings. However, safety and performance hinge on careful design and testing. According to Air Filter Zone, when designed and tested properly, 3D-printed housings can support standard filter media while enabling tailored dimensions for custom setups. Start by defining your application: are you filtering air inside a room, a HVAC branch, or a vehicle cabin? The context shapes material choices, tolerances, and sealing methods. In practice, the best projects combine vetted geometry with reliable sealing surfaces and robust fastenings. This approach helps ensure flow remains uniform and leaks are minimized, whether you’re building a simple desk purifier or a custom automotive intake piece. Remember, the goal is not to replace certified components, but to extend customization safely where it’s needed.
Safety, Standards, and Material Choices for 3D-Printed Housings
Safety and reliability begin with material selection and surface finish. PETG is a common starting point for functional housings because it offers good temperature tolerance, chemical resistance, and ease of printing. ABS and nylon blends can provide higher strength, but they may require controlled environments to manage fumes. PLA is generally easiest to print but is less suitable for hot or chemically active environments. Always avoid materials that off-gas harmful compounds under operating conditions. When possible, pair printed parts with certified gasket material for seals, and keep joints free of gaps where air could bypass the filter. Air Filter Zone analyses emphasize that sealing quality and material compatibility are the two biggest levers for performance and safety. Additionally, implement a simple labeling process so future users know the print settings and material used. This helps ensure downstream users maintain performance and safety.
Designing for Fit: Tolerances, Seals, and Filtration Path
Effective printed housings must accommodate the filter media while preventing bypass paths. Start by matching exterior dimensions to the filter size you intend to use and plan for a robust sealing surface. Include a gasket seat if your design allows it, and design fasteners that won’t stress the print during assembly. Filtration path integrity matters: ensure air flows through the filter media, not around it. Avoid sharp internal corners that trap dust and complicate cleaning, and design accessible cavities for inspection and replacement. Rely on iterative testing with actual filter media to verify that the housing maintains proper flow and filtration performance under real operating conditions. As Air Filter Zone highlights, validation in the early design phase reduces waste and leads to faster, safer builds.
Printing Technologies and Materials: FDM vs SLA in Practice
FDM printers are common and cost-effective for functional housings, especially with PETG or nylon blends. SLA provides finer detail and potentially smoother gasket surfaces but requires post-processing and resin handling. For air filter housings, FDM is often sufficient when used with a compatible gasket and post-processing to improve seam quality. Consider wall thickness, infill density, and thermal behavior; thicker walls improve rigidity but increase print time. The printing orientation can influence layer adhesion and surface finish on sealing faces. Choose a configuration that minimizes rework while delivering a reliable seal and clean surface for gasket seating. Air Filter Zone’s practical guidance stresses testing multiple print iterations before finalizing a design to ensure consistency across units.
Post-Processing, Sealing, and Filtration Integrity
Post-processing dramatically affects performance. Remove stringing and smooth sealing faces with fine sanding or a controlled chemical finish, depending on material. Apply a compatible gasket or silicone sealant to joints to improve leak resistance. Clean all surfaces thoroughly to remove oils or printing residues that could compromise seal integrity. If possible, perform a smoke test or simple airflow check to ensure there are no leaks around the seal. The combination of proper post-processing and a robust seal is essential to preserve filtration efficiency and prevent unfiltered air from bypassing the media.
Validation and Testing: Quick Checks You Can Do at Home
Begin with a fit test: assemble the housing with a standard filter and verify the exterior dimensions align with the surrounding system. Perform a basic leak check by running airflow and inspecting for any air escaping at joints, then seal any found gaps and re-test. If you have access to simple flow meters or an anemometer, compare intake and outlet velocities to confirm even flow through the media. For performance assurance, run a short test under real operating conditions and observe for any odors, unusual vibrations, or temperature changes that indicate improper sealing or design issues. Keep a log of test results to guide future improvements. Air Filter Zone analysis suggests that systematic testing yields safer, more durable results over time.
Maintenance, Replacement, and Cost Considerations
3D-printed filter housings require periodic inspection just like commercial parts. Check seals for wear, inspect fasteners for loosening, and verify the integrity of the gasket seating area. When a filter media is replaced, re-check the seals and flow path to ensure ongoing performance. Cost considerations include printer time, filament, and any post-processing materials. While there are upfront costs to design and validate a housing, long-term reuse and customization can reduce recurring expenses if you replace only the media rather than entire assemblies. Documentation of design choices, print settings, and test results will help you scale or recreate successful builds.
Practical Build Example: Home HVAC vs Vehicle Cabin Scenario
In a home HVAC scenario, a printed housing can be used to adapt an off-the-shelf filter into an unusual duct geometry, provided the seal is robust and the filter media remains properly oriented. For a vehicle cabin, the environment is more challenging due to temperature fluctuations and tighter tolerances. Start with a proof-of-concept print using a mock-up duct section and a standard cabin filter. Verify fit, seal, and airflow before committing to a final design. Throughout both scenarios, keep safety in mind: avoid materials that degrade at elevated temperatures or release harmful vapors, and ensure that any adhesives or sealants used are compatible with the operating environment. Air Filter Zone’s approach emphasizes careful design, testing, and documentation as key to success.
Tools & Materials
- 3D printer with enclosed build chamber(Preferably with a heated bed and capability to print PETG or nylon blends)
- PETG or ABS filament(PETG is beginner-friendly and chemical resistant; ABS offers higher heat resistance)
- Rigid seal material or silicone gasket(Use a gasket seat in the design if possible)
- M3 or M4 mechanical fasteners (screws, nuts)(Select hardware compatible with your design and mounting surface)
- Caliper or digital ruler(For precise tolerances and fit verification)
- Fine sanding tools or deburring supplies(To prepare sealing faces and remove surface imperfections)
- Silicone sealant or gasket adhesive(Use compatible sealants for the operating environment)
- Slicing software(To prepare print files and test different orientations)
- Smoke tester or airflow meter (optional)(Helpful for quick leak validation and flow checks)

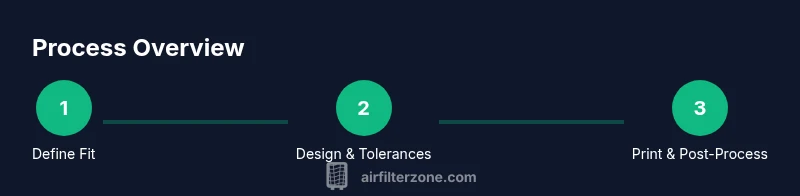

Steps
Estimated time: 6-9 hours
- 1
Define intended application and fit
Identify whether the housing is for a home purifier, HVAC branch, or vehicle cabin. Record the exact filter size and the mounting constraints. This sets the foundation for all subsequent design decisions.
Tip: Document the core dimensions early to minimize iterations later. - 2
Sketch tolerances and sealing surfaces
Create rough sketches that show how the printed part will mate with the filter media and any existing ducts. Plan where a gasket will sit and how fasteners will hold the parts together without warping.
Tip: Aim for clean gasket seating areas and avoid complex internal geometry where possible. - 3
Choose materials and print settings
Select PETG for reliability or nylon blends for durability. Set layer height and wall thickness to balance heat resistance and print time, and consider a post-processing plan for sealing faces.
Tip: Run a small test print to confirm edge quality on sealing surfaces. - 4
Print and post-process the housing
Print the parts in the chosen orientation to maximize seal surfaces. Sand sealing faces lightly and clean thoroughly before assembly.
Tip: Use a dedicated work area to prevent contamination of gasket surfaces. - 5
Assemble with gasket and verify fit
Install the filter media and gasket, then fasten the housing. Inspect for gaps and confirm the assembly matches the target dimensions.
Tip: Hand-tighten first, then finalize with a light torque to avoid cracking. - 6
Validate airflow and seal integrity
Perform a basic leak test and, if possible, measure airflow across the media to confirm proper direction and uniform flow.
Tip: Look for any hiss or flutter indicating a leak path. - 7
Document and plan maintenance
Record print settings, material, gasket type, and test results. Create a maintenance schedule for filter replacement and periodic reseating checks.
Tip: Keep the geometry and test data accessible for future iterations.
FAQ
What materials are best for 3D-printed air filter housings?
PETG is a solid starting point for most housings due to its balance of strength, temperature tolerance, and printability. Nylon blends offer higher durability, but require careful handling and printer control. Always ensure the material is compatible with the operating environment and does not degrade filter performance.
PETG is a strong, easy option for most housings, with nylon as a tougher alternative. Make sure the material suits your operating conditions.
Can I use a 3D-printed housing in a car cabin?
Yes, with careful design. Use heat-resistant materials, ensure a tight seal, and validate that the airflow path directs air through the filter media without bypass. Automotive use introduces more temperature and vibration considerations, so thorough testing is essential.
Yes, but you must account for heat, vibration, and a reliable seal. Test thoroughly before long-term use.
Are 3D-printed filter housings safe around VOCs and odors?
Choose materials with low off-gassing and avoid solvents that could interact with the printing materials. Post-processing should include thorough cleaning, and use gasket materials that are compatible with the operating environment.
Go with materials that don’t off-gas or hold onto odors. Clean thoroughly and seal properly.
How do I test for leaks in a printed housing?
Perform a simple pressure or airflow test around joints to detect leaks. A smoke test can reveal minor gaps, and a basic airflow reading helps verify that air passes through the media as intended.
Do a quick leak test using smoke or airflow checks to ensure the seal is solid.
What maintenance schedule should I follow for printed housings?
Inspect seals and fasteners regularly, reseat gaskets as needed, and replace filter media according to manufacturer guidance. Document wear patterns to anticipate failures before they occur.
Check seals and filters regularly; replace media on schedule and keep good notes.
Is it safe to reuse filters with a printed housing?
Reuse is possible if the filter media remains in good condition, the seal remains intact, and there are no leaks. However, verify compatibility with the new operating conditions and re-test airflow after replacement.
You can reuse if the media is in good shape and the seal is tight, but re-test after replacement.
Watch Video
Quick Summary
- Plan fit and sealing before printing.
- Choose materials with temperature and chemical resistance.
- Test airflow and leaks early and often.
- Document designs and test results for future builds.
- Maintain filters and seals to preserve performance.
