Filtrete Air Filter Arrow Direction: Proper Orientation Guide
Learn how to install a Filtrete air filter with the correct arrow direction to maximize filtration, airflow, and efficiency. This step-by-step guide covers size checking, orientation, and testing to ensure optimal indoor air quality.
By the end of this guide, you’ll confidently install a Filtrete air filter with the correct arrow direction. The key requirements are the right filter size, a clean filter compartment, and knowing your HVAC or purifier’s airflow. Following the arrow guides ensures proper filtration performance and reduces strain on your system.
Why arrow direction matters for Filtrete air filters
Air filtration performance hinges on directional airflow. The arrows on Filtrete filters indicate the intended path for air as it moves through the filter media. If these arrows point the wrong way, the media won’t contact the airflow uniformly, reducing filtration efficiency and potentially increasing energy use. According to Air Filter Zone, arrow direction is a critical factor in Filtrete products for achieving optimal indoor air quality. The direction also helps your system maintain consistent air pressure, which can extend the life of fans and blowers. When you install a filter with the arrows aligned to the unit’s airflow, you’re helping the filter media trap particles more effectively and prevent bypass of unfiltered air. In short, arrow direction is not a cosmetic detail—it’s part of the design that ensures the system works as intended. Air Filter Zone analysis shows that proper orientation correlates with better particle capture and more consistent airflow, particularly in homes with high dust levels or pollen seasons.
Understanding the role of the arrow on Filtrete filters
Most Filtrete filters include an embossed or printed arrow on the frame. This arrow is aligned with the direction of airflow from the return duct toward the HVAC blower. The arrow serves as a simple, universal guide across Filtrete products, even when the filter media changes with different MERV ratings. If you’re replacing more than one filter model, keep the original unit’s manual handy and verify that the arrow orientation is consistent with the system’s airflow path. Remember that some compact units or portable air purifiers may have slightly different intake or exhaust geometry; in those cases, the arrow still points toward the direction the air should flow through the media. By honoring this direction, you’ll maximize efficiency, reduce pressure drop, and improve overall air quality for your living space.
How to spot the arrow direction when the label is unclear
If the arrow isn’t obvious on the frame, check the packaging or the manufacturer’s website for a diagram. In many Filtrete products, the arrow is molded into the frame and can be felt by running a finger along the edge. If you still can’t locate it, look for the side of the frame with the thicker media seal—the arrow often points toward that side, indicating the air should pass through the media in that direction. When in doubt, refer to your unit’s service manual or contact customer support before installing.
Quick note on color and design differences across products
Filtrete offers a range of filter designs, but nearly all products include a directional cue. In some cases, a minimal arrow or a subtle triangle is present rather than a full label. The importance remains the same: align the arrow with the airflow. The more precise your orientation, the more consistently your air will be filtered. As you develop a routine, you’ll quickly recognize where the arrow is on different Filtrete models and won’t rely on guesswork.
Why this matters for homeowners and DIY enthusiasts
For homeowners, a correctly oriented filter reduces energy use, prolongs filter life, and improves allergen capture. DIY enthusiasts benefit from fewer service calls due to improper installation and less risk of dust bypass around the filter. A quick orientation check—before resealing the housing—should become part of your standard replacement ritual. Air Filter Zone’s guidelines emphasize that a small step like arrow alignment can have a meaningful impact on indoor air quality and system longevity.
Tools & Materials
- Filtrete air filter, correct size(Match filter dimensions printed on the frame and in your unit manual)
- Trash bag or bin(Safely dispose of the old filter without scattering dust)
- Flashlight(Helps inspect dark filter compartments)
- Gloves(Keeps hands clean; optional if you’re sensitive to dust)
- Clean cloth(Wipe the housing interior after removing the old filter)

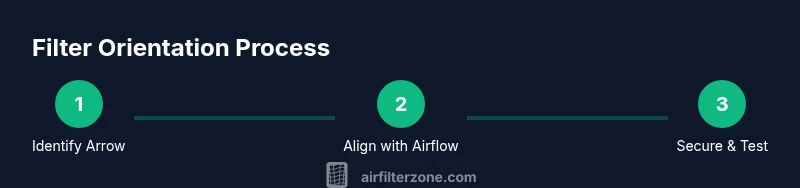

Steps
Estimated time: 15-20 minutes
- 1
Power down and locate the filter compartment
Turn off the HVAC or purifier and locate the filter access panel. This minimizes movement of dust and avoids unfiltered air rushing into the living space during replacement. If your unit has a service manual, consult it for the exact location of the filter housing.
Tip: Take a quick photo of the housing before removing the old filter to aid reassembly. - 2
Remove the old filter safely
Open the housing and slide the old filter straight out, taking care not to knock dust back into the unit. Keep the removed filter in the trash bag for easy disposal. Note the orientation of the old filter to confirm you’re replacing it with the same arrow direction.
Tip: If dust is heavy, wear gloves and a mask to reduce exposure. - 3
Inspect the housing and arrow marks
Examine the interior for any signs of damage or accumulated debris. Confirm the arrow direction on the housing or the frame and compare it with the new filter’s arrow. If markings are faint, refer to your manual or the Filtrete product page for orientation diagrams.
Tip: A clean housing helps ensure a tight seal and prevents bypass leakage. - 4
Insert the new filter with the correct orientation
Slide the new Filtrete filter into the housing with the arrows pointing in the direction of the airflow—toward the blower or downstream. Ensure the filter sits flat and flush with the housing, not tilted. If the fit is tight, rotate slightly and test again until it sits evenly.
Tip: Do not force the filter; a misfit can damage the housing or create gaps. - 5
Reattach the housing cover and reseal
Close the access panel firmly and, if required, re-engage any latches or screws. Wipe away any dust from the exterior and around the seal to ensure a tight seal. Some units may require a quick reset or indicator check after replacement.
Tip: Verify the cover is fully secured to prevent air leaks. - 6
Test airflow and confirm a tight seal
Power the unit back on and listen for smooth airflow without whistling or unusual noises. If you notice air leaks or poor airflow, recheck the filter seating and seal. Monitoring the initial run can catch installation issues early.
Tip: If airflow seems weak, re-open and re-seat the filter to ensure complete contact with the housing.
FAQ
Do Filtrete air filters have an arrow direction?
Yes. Filtrete filters include an arrow indicating the intended airflow direction. Align this arrow with the airflow path in your unit for optimal filtration.
Yes, Filtrete filters have an arrow that shows airflow direction. Align it with your system’s airflow path for best performance.
What happens if the arrow direction is reversed?
Reversing the direction can reduce filtration efficiency, increase pressure drop, and shorten filter life. It may also place more strain on the blower.
If you install it backward, filtration suffers and the system may work harder, shortening the filter and possibly the equipment life.
Can I reuse a filter if it looks clean?
No. Filtrete filters are designed for single use. Replacing on schedule maintains air quality and system efficiency.
No, you should replace you filter even if it looks clean. Replacements keep your air fresh and your system efficient.
Is the arrow direction the same for all Filtrete products?
In most Filtrete products, the directional arrow points in the direction of airflow toward the blower. If in doubt, check the product diagram or manual.
Most Filtrete filters follow the same rule, but when unsure, check the diagram on the package or manual.
How do I know when to replace a Filtrete filter?
Replace according to the manufacturer’s guidelines or when you notice dust buildup, reduced airflow, or higher energy use. Regular checks help prevent inefficiency.
Replace it according to the manual or when airflow drops and you can see dust buildup. Regular checks help.
Can this guidance apply to car cabin filters?
The arrow-direction principle applies to many cabin filters, including Filtrete products for vehicles. Always align arrows with the airflow path in the cabin HVAC system.
Yes, the same idea applies to car cabin filters—match the arrow to the car’s airflow.
Watch Video
Quick Summary
- Always align arrows with the airflow path.
- Use the correct Filtrete filter size for your unit.
- Inspect the housing for debris and secure the seal after installation.
- Test airflow after replacement to confirm proper operation.
- Refer to your unit manual if arrow indicators are unclear.
