Air Filter Installation Direction: A Practical Guide

Why installation direction matters

Understanding air filter installation direction is essential for maintaining indoor air quality and efficient HVAC operation. The direction of airflow is built into most filter frames, especially in pleated, panel, and carbon filters. When installed incorrectly, the filtration media may not seal properly, allowing unfiltered air to bypass the filter and circulate through living spaces. This can lead to higher dust levels, more frequent filter changes, and unnecessary strain on the blower. The Air Filter Zone team notes that alignment with the unit's airflow path is a simple, high-impact step in routine maintenance. By getting the orientation right, homeowners protect both air quality and system longevity, reducing long-term energy use and ongoing maintenance costs.

In residential settings, the return duct pulls air into the HVAC unit, and the supply side pushes it out to living spaces. In most cases, the arrow on the filter should point toward the blower, indicating the direction air travels through the media. If arrows face the wrong way, the filter can become a barrier rather than a purifier, and the system may work harder to push air through. The goal is a clean seal around the filter with unobstructed airflow. This section also covers common indicators beyond arrows, such as embossed marks on the frame or packaging cues that help you confirm orientation before installation.

How to identify the correct direction

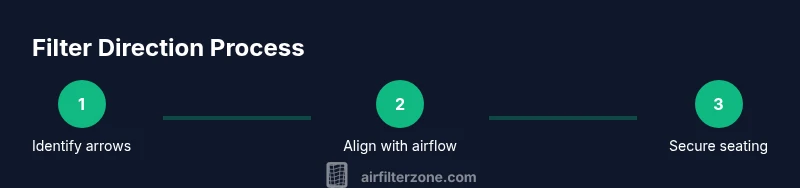

Identifying the correct orientation starts with locating any arrows or airflow indicators on the filter frame itself. If the filter has a visible arrow, align it with the arrow on the HVAC unit’s housing or with the direction indicated in the owner’s manual. In cases where the frame is obstructed or arrows are faint, inspect the filter’s perforations or the media pattern—filters are designed to be installed with the dense side facing the airflow toward the blower. Some filters include packaging instructions that explicitly state the orientation; in others, the manufacturer’s guide inside the packaging provides the definitive cue.

If you cannot locate arrows, refer to the unit’s schematic or contact the manufacturer. Portable or window air purifiers and some car filters may use a slightly different convention, but the same principle applies: align the filter so air enters through the media in the direction of airflow. For people handling multiple filters, keep a small log of the orientation for each replacement to avoid mix-ups over time.

Common types of air filters and directional cues

Different filter designs use different directional cues. Most residential pleated filters include a clearly marked arrow that points in the direction of airflow. Some filters are designed to be symmetrical with no directional cue, in which case orientation does not affect performance as much, but it is still best practice to follow any manufacturer guidance. Carbon and hybrid filters often share the same directional arrows, indicating the air should pass through the carbon media before moving on to the blower. If a filter uses a frame with a mesh or grid, the arrow typically points toward the blower side. In vehicle cabins, the direction usually faces toward the engine bay or away from the cabin depending on the housing design. Remember: even non-directional designs still need a proper seating to prevent bypass leaks and ensure a solid seal.

Common mistakes to avoid and quick checks

Common mistakes include installing filters with arrows pointing away from the blower, forcing a filter into a frame that doesn’t fit, and neglecting to reseal the housing after replacement. Before finalizing installation, perform a quick check: verify the filter sits flat within the frame with no gaps around the edges, and ensure the housing snaps securely shut. If the unit features a gasket or foam seal, confirm it is intact and not compressed or damaged. A helpful check is to run the system briefly after replacement and feel for even airflow at vents; unusual resistance or noise can indicate a seating issue. Remember to log the date of replacement for routine maintenance.

How to maintain correct orientation over time

Consistency is key to preserving filtration efficiency. Create a simple maintenance routine to inspect filters when you change them—every 1–3 months for most homes, longer in low-usage periods. After replacement, keep a small label with installation date and orientation notes on the inside of the access panel. If you notice a change in airflow, odd noises, or increased dust in the home, re-check the filter orientation and seating. Periodic checks help catch shifted filters caused by panel wear, improper handling during replacement, or minor housing deformations. By maintaining correct orientation, you maximize filter life and keep indoor air quality at its best.
