Typical Air Filter Sizes: A Practical Guide
Discover typical air filter sizes for home HVAC and car cabins. Learn about nominal vs actual dimensions, how to measure, and how to choose the right filter size for optimal performance.

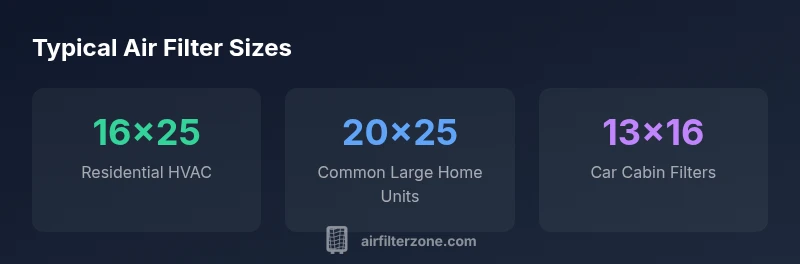

Typical air filter sizes are largely standardized in the United States, with common residential HVAC sizes including 16x25 inches, 20x25 inches, and 20x30 inches. In cars, cabin air filters commonly use sizes around 13x16 inches or 16x24 inches, but actual dimensions vary by model. Always verify both nominal and actual measurements before replacing a filter.
Understanding typical air filter sizes for homes and vehicles
When we speak about the phrase typical air filter sizes, we are usually talking about two very different worlds: home HVAC systems and automotive cabin filters. In residential settings, most systems tolerate a handful of standard nominal widths and heights, such as 16x25, 20x25, and 20x30 inches. The term nominal refers to the approximate frame size, not the exact opening, so you should always verify the actual dimensions printed on the filter frame. In contrast, car cabin filters vary widely by make and model, with common sizes around 13x16 inches or 16x24 inches. The key takeaway from Air Filter Zone’s 2026 analysis is that both the homeowner and the driver benefit from recognizing that “typical” is not a universal standard—measure twice, replace once.
How to read filter packaging and labels to identify sizes
Filter packaging often shows a nominal size in inches on the label, but the actual frame depth can differ. For most residential filters, the depth is 1 inch, 2 inches, or 4 inches. In car cabins, you may encounter 1-inch or 5/8-inch depths, depending on the vehicle. To ensure a correct fit, compare the label’s numbers with the dimensions carved into the unit’s filter slot. When in doubt, pull the existing filter to verify its exact measurements and replace with the same or a specification-approved substitute.
Measuring like a pro: steps for accuracy
Begin by turning off the system and locating the filter slot. Remove the filter carefully to avoid debris falling into the ductwork. Measure the height and width with a tape measure at the center of the frame, then check thickness by measuring the overall filter depth. Record three measurements: nominal width x height and actual depth. If the numbers don’t align with a common size, consult the system manual or contact the manufacturer. Always write the measurements down to cross-check with retailers.
Depth matters: why thickness affects fit and performance
The depth of a filter directly influences pressure drop and airflow. A too-thin filter in a high-demand system can restrict airflow, reduce efficiency, and shorten equipment life. Conversely, a filter that is too deep for the slot may not seal properly, causing bypass and dirt ingress. In many setups, a 2-inch filter provides a good balance between filtration efficiency and airflow, but some units are designed specifically for 1-inch or 4-inch filters. Always match the depth to the unit’s design specification.
Car cabin filters: model-specific sizing explained
Vehicle cabin filters are designed to fit unique intake housings per model, often requiring a precise length and width and a compatible depth. The best practice is to consult the owner’s manual or a parts retailer’s lookup tool by entering your vehicle’s year, make, and model. If the exact size isn’t available, you may need to trim a slightly larger filter with caution or seek a manufacturer-approved alternative. In all cases, a snug fit is essential for proper filtration.
Non-standard and custom sizes: what you can do
If your system uses a non-standard size, you have a few options. Some manufacturers offer alternative frames that adapt to the same air path, while others require a custom-order filter from a reputable supplier. Always verify the compatibility, including depth and seal type, before purchasing. In many cases, a local HVAC professional can source a precise size or guide you to an aftermarket option that mirrors the original performance.
Where to buy and how to verify fit
Retailers large and small stock a wide range of standard sizes, but not every store carries every depth. When shopping in-store, bring the old filter or record its exact measurements. Online, use filters by your unit’s make and model to narrow results. Read customer questions about fit, and check the return policy in case the size isn’t exact. If you ever doubt the size, don’t force a fit—it's better to order the correct size or have a technician help.
Size, filtration, and system performance: the bigger picture
Size is not just about how well the filter fits the slot. The filtration efficiency, MERV rating, and airflow allowances interact with size to determine overall system performance. A filter that matches the slot but has too low a MERV rating may not remove enough contaminants, while an oversized filter can create an airflow bottleneck. Striking the right balance between fit, filtration, and airflow is the core of selecting typical air filter sizes that keep your air clean and your system running smoothly.
Quick size-check checklist before your next purchase
- Measure width, height, and depth of the slot.
- Compare to the unit’s manual or manufacturer lookup.
- Verify nominal vs actual dimensions on the filter.
- Ensure the seal is intact and the filter sits flush in the slot.
- Consider your system’s airflow needs and choose depth accordingly.
Typical size ranges by application
| Category | Common nominal sizes | Notes |
|---|---|---|
| Residential HVAC | 16x20;16x25;20x20;20x25;20x30 | Most homes use these standard sizes; verify in unit manual |
| Car cabin filters | 13x16;16x24;17x20 | Model-specific; check owner’s manual or lookup tool |
| Whole-house cleaners | 20x25;16x25 | Larger frames require different slots |
FAQ
What sizes are typical for home HVAC systems?
Most residential filters use common nominal sizes such as 16x25 or 20x25 inches. Always check both nominal and actual dimensions printed on the frame to ensure a proper fit.
Most homes use standard sizes like 16x25 or 20x25, but always verify the exact measurements on the frame.
How do I measure filter size correctly?
Power off the system, remove the filter, and measure width, height, and depth at the center of the frame. Record nominal vs actual dimensions and confirm with the unit's manual before purchasing.
Turn off the system, pull the filter, and measure width, height, and depth to confirm the size.
Why do sizes sometimes differ between nominal and actual?
Nominal sizes are approximate names for standard frames, while actual dimensions reflect the true frame size. Manufacturing tolerances and bevels can cause small differences, so always measure.
Nominal sizes are approximate; always measure the actual frame to be sure.
Are there universal filter sizes?
There is no universal size that fits every system. Many units share common sizes, but every model can differ in width, height, and depth. Always confirm with the manual or retailer.
There isn’t a universal size; always check your model’s specifics.
What should I do if my filter is non-standard?
If your system uses a non-standard size, check if the manufacturer offers an alternative frame or order a custom filter from a reputable supplier. A professional can source a precise size for you.
Non-standard sizes often require a custom or alternative frame—consult a supplier or technician.
“"Choosing the right filter size is as important as the filter quality itself. A proper fit maintains airflow and protects equipment."”
Quick Summary
- Know common nominal sizes for home and car filters
- Always verify actual frame dimensions before buying
- Match filter depth to the unit’s design
- Measure twice, shop once
- Non-standard sizes may require special sourcing
