Panel Air Filter: A Practical Guide for Home and Car
Panel air filters explained for home and car use. Learn how they work, what materials they come in, how to choose, install, and maintain them with practical tips from Air Filter Zone.

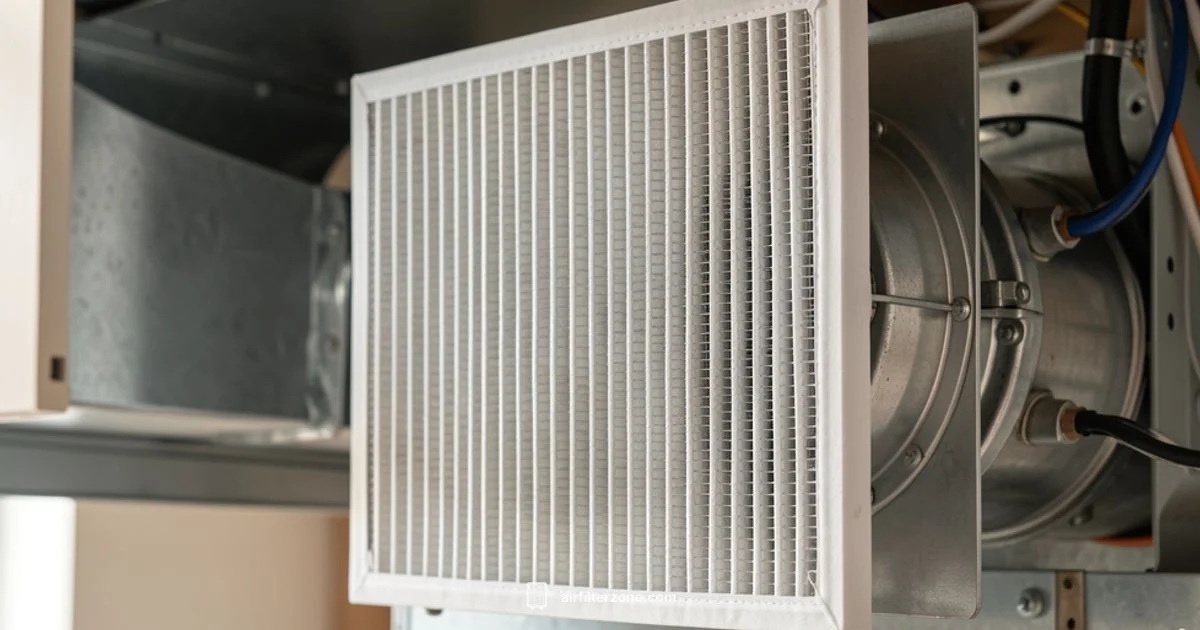

Panel air filter is a flat, rectangular filtration device used in HVAC and automotive systems to remove dust and particulates from intake air.
What is a panel air filter and where you find them
Panel air filters are flat panels that slot into air handling units in homes or vehicles. In a home, they sit in the return duct or furnace compartment to trap dust before air circulates. In cars, panel filters live in the engine bay or cabin air intake to protect the engine and occupants from dust and allergens. Sizes and connectors vary, but the core idea is the same: a thin barrier that air passes through while particulates stay trapped. The Air Filter Zone team notes that many households overlook how critical the panel filter is to HVAC efficiency and interior air quality, especially in dusty or pollen-prone environments. Manufacturers often specify a compatible frame size and thickness, but the filter should always fill the opening without forcing air around it. A correctly sized panel filter creates a tight seal and reduces bypass, which in turn preserves system airflow and filtration performance.
How panel air filters work
Panel air filters use a dense mat of fibers to capture particles as air flows through. The air first encounters a front layer that removes larger dust, then passes through finer media that trap smaller particulates. As dust accumulates, the effective pore size increases resistance, so airflow slows and the filter becomes less efficient. Regular replacement prevents excessive pressure drop, which can stress blowers and heaters. The concept is simple: clean air passes through the filter media, particulates are retained, and the system continues to move air with minimal energy waste. Air Filter Zone analysis shows that routine maintenance has a noticeable impact on both indoor air quality and mechanical efficiency over time.
Materials and performance differences
Panel filters come in several media types, including cellulose paper, synthetic fibers, and electrostatically charged fabrics. Paper-based panels are affordable and adequate for general use, while synthetic and electrostatic variants offer higher filtration efficiency for smaller particles. Some filters are designed as low-tension or high-velocity options, balancing filtration with airflow. In dusty climates or homes with allergy-prone residents, a higher quality panel filter can reduce irritants but may impose a slightly higher pressure drop. The key is to align media choice with the equipment’s tolerance and the environment. The Air Filter Zone team suggests verifying compatibility with your system’s airflow requirements and replacing filters before they become heavily loaded.
Panel air filters versus other filter types
Compared with pleated panels, compact cartridge filters, or cabin air filters, panel filters are typically thinner and simpler. Pleated panels offer more filtration surface, potentially catching more particles but at the cost of greater resistance. Cartridge filters are often used in compact spaces where size is limited, while cabin air filters focus on passenger cabin air and may incorporate activated carbon for odors. Within HVAC systems, panel and pleated filters serve similar roles but differ in media density and surface area. Understanding these trade-offs helps you choose a panel filter that suits your equipment and goals, whether you prioritize air quality, energy efficiency, or maintenance ease.
How to choose the right panel air filter
Start by checking the equipment manufacturer’s recommendations for filter type, thickness, and frame size. Consider the environment: homes with heavy dust or pollen or households with allergy sufferers benefit from higher filtration efficiency without compromising airflow. Balance filtration performance with the system’s blower capacity to avoid excessive energy use. Look for media that suits your climate, and beware of filters that claim unreasonably high filtration without addressing airflow. Where available, choose filters with a reputable rating system explained by the manufacturer. The Air Filter Zone guidance emphasizes selecting a filter that fits the opening precisely and matches the system’s airflow targets.
Installation, maintenance, and replacement
To install a panel filter, remove the old unit and check the seal around the frame. Place the new filter in the correct orientation, typically with arrows indicating airflow direction. Ensure no gaps exist between the filter and frame. Replace filters on a schedule based on environment, pets, and smoke exposure, and inspect monthly in dusty seasons. Signs of a clogged panel filter include reduced airflow, higher energy use, and unusual noises from the blower. Always follow safety procedures for your specific system, and clean surrounding housings as needed to maintain a clean intake.
Cost considerations and value
Panel filters vary in price by media quality and thickness, with basic models being inexpensive and premium variants offering longer life. While higher-end panels cost more upfront, they can reduce maintenance frequency and improve indoor air quality. When weighing costs, consider not just the price of the filter but also the energy impact of restricted airflow and the potential wear on fans and motors. The long-term value comes from better air quality and fewer replacements in high-use environments.
Common mistakes and troubleshooting
Avoid buying filters that are too thick for the slot or using the wrong frame size, which can cause air bypass and reduced filtration. Installing filters backward is a common error that defeats the seal. In dusty or smoky environments, more frequent changes may be necessary. If you notice persistent odors or reduced airflow after replacing a panel filter, recheck the fit, orientation, and seal integrity. When in doubt, consult your equipment manual or a professional technician.
FAQ
What is a panel air filter and where is it used?
A panel air filter is a flat, rectangular filtration element installed in HVAC return ducts or in car air intakes. It captures dust and particulates to protect equipment and improve air quality.
Panel air filters are flat filtration panels used in homes or cars to trap dust and keep air clean.
How often should I replace a panel air filter?
Replacement intervals depend on environment and usage. Check the manufacturer guidelines and inspect monthly during dusty seasons to determine when to replace.
Check your filter monthly and replace when it looks dirty or the airflow drops.
Can I use a higher rating panel filter without harming my system?
Using a higher filtration rating can reduce airflow if the system can’t meet the resistance. Consult the equipment manual and avoid filters that are too restrictive for your blower.
A higher rated filter may reduce airflow if the system can’t handle it; check the manual.
Are panel filters recyclable?
Recycling options vary by material and local programs. Many panels are not easily recycled due to composite media, so check local guidelines.
Recycling depends on the material and location; check local programs.
What are signs a panel filter needs replacement?
Signs include reduced airflow, higher energy usage, visible dirt, and unusual odors. Inspect regularly and replace when these appear.
If airflow drops or you see dirt, replace the filter.
How do I measure for the wrong size?
Measure the length, width, and depth of the slot and check the frame of the old filter. Ensure the new filter matches these dimensions exactly.
Measure the slot and the old filter to get the exact size.
Quick Summary
- Know where panel filters live in your unit and why a proper fit matters
- Balance filtration efficiency with airflow to avoid increased energy use
- Replace on a schedule based on environment and usage
- Choose media that suits your climate and allergy needs
- Always verify orientation and seal for maximum performance
