c545 Error Code: Urgent Troubleshooting for Air Filters
Learn how to diagnose and fix the c545 error code on your air filtration system. This urgent guide covers quick fixes, a diagnostic flow, step-by-step repairs, safety tips, and prevention to keep your air clean and your unit running.
c545 is a sensor/readout fault in your air filtration system. Treat it as urgent: power cycle the unit, reseat all sensor connectors, and inspect wiring for damage. If the code persists, consult the user manual or contact support. Air Filter Zone recommends shutting down the device if overheating occurs and avoiding DIY sensor replacement unless you’re qualified.
What c545 Means for Your Air Filter System
According to Air Filter Zone, c545 indicates a sensor/readout fault within your air filtration system. This code can trigger irregular readings, unexpected shutdowns, and reduced filtration performance. While not always dangerous, it signals an issue that should be addressed promptly to restore reliable monitoring and clean air. Start with basic resets and connector checks before considering parts replacement.

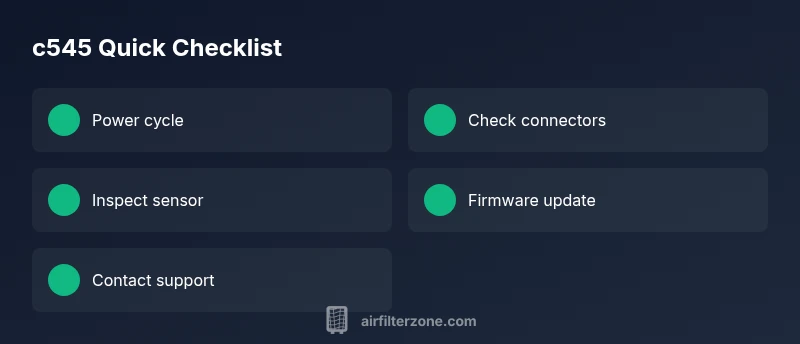

Quick Fixes You Can Try Now
- Power cycle the unit: unplug, wait 60 seconds, plug back in. This resets many sensor faults.
- Reseat sensor connections: gently disconnect and reconnect harnesses from the main board and sensor modules.
- Inspect wiring for damage: look for frayed insulation, bent pins, or discolored connectors.
- Check for firmware update: if your device supports updates, install the latest version through the setup menu.
- If the fault persists, proceed to step-by-step fixes or contact support.
Diagnostic Flow: Symptom to Cause
When you see c545, start with the most likely causes in order: a sensor misalignment or loose connector, a faulty sensor, or controller/board issues. Symptoms include unexpected shutdowns, fluctuating readings, or the display showing errors even in clean conditions. By ruling out simple causes first, you can avoid costly repairs and downtime.
Step-by-Step Fix for the Most Common Cause
- Power cycle as above and ensure the unit is unplugged. 2) Disconnect the sensor harnesses, inspect for corrosion or bent pins, reseat firmly. 3) Reconnect power and run a self-test if available. 4) If the fault persists, replace the sensor or module with an approved part. 5) Run a test cycle and verify readings stabilize within normal ranges. Pro-tip: keep a log of fault codes and dates for warranty or service.
Other Causes and How to Address Them
Alternatives include a failing control board, motherboard connector damage, or environmental factors like high humidity affecting sensors. Fixes vary: reseatboard connectors, update firmware, or schedule professional service for sensor replacement. Avoid opening the power supply or enclosure if you’re unsure; this could create shock hazards.
Safety Tips and When to Call a Pro
Always unplug before inspection. If you smell burning, notice overheating, or the unit trips breakers, stop and unplug immediately. For complex failures, sensor replacement, or PCB repair, contact a trained technician. Costs typically range from $50–$150 for diagnostic checks to $150–$400 for sensor replacements, depending on part availability and labor.
Prevention Tips to Avoid c545 in the Future
- Schedule regular filter maintenance and sensor checks every 3–6 months.
- Keep the device in a cool, dry location and away from direct heat sources.
- Use only manufacturer-approved parts and firmware updates.
- Maintain clean intake areas and avoid placing furniture or textiles over the unit to prevent airflow obstruction.
Steps
Estimated time: 30-60 minutes
- 1
Power cycle the unit
Unplug the device, wait 60 seconds, plug back in. Power cycle clears many sensor faults and resets the controller.
Tip: Label the unplug time to keep track of resets. - 2
Inspect sensor connectors
Carefully disconnect and reconnect all sensor harnesses; look for loose pins or corrosion.
Tip: Use a flashlight and avoid touching circuitry with metal tools. - 3
Run a self-test if available
Navigate to the device's diagnostics menu and run a self-test to confirm sensor status.
Tip: Document any codes that appear during the test. - 4
Replace faulty sensor if needed
If the fault persists, replace the sensor or module with an approved part.
Tip: Ensure the replacement part matches your model number. - 5
Verify readings and seal enclosure
Reassemble, perform a test cycle, and confirm readings stabilize within normal ranges.
Tip: Keep the enclosure sealed to protect internal components.
Diagnosis: Error code c545 displayed; device shows sensor fault
Possible Causes
- highLoose or damaged sensor connectors
- mediumFaulty sensor module
- lowControl board issue
Fixes
- easyPower cycle and reseat connectors
- easyTest with a known-good sensor or module
- hardReplace sensor/module
FAQ
What does c545 mean on my air filter?
c545 indicates a sensor/readout fault likely related to the sensor or controller. It can cause inaccurate readings or shutdowns. Follow the quick fixes first.
c545 is a sensor fault; start with a reset and check connections.
Is c545 dangerous?
Not inherently dangerous, but it signals a potential sensor issue that could affect air quality monitoring. Unplug if you smell burning or see overheating and seek professional help.
Not dangerous by itself, but get it checked if it continues.
What is the quickest fix for c545?
Power cycle and reseat the sensor connections. If the fault remains, test with a known-good sensor or contact support for a replacement part.
Power cycle and reseat connections first, then test.
When should I call a pro?
If you’re unsure about working with electronics, or if the unit overheats, trips a breaker, or the fault persists after resets, call a qualified technician.
Call a trained technician if it doesn’t clear after resets.
Can firmware updates prevent c545?
Firmware updates can fix sensor communication issues; check the manufacturer’s site and install updates if available.
Update firmware to potentially fix sensor faults.
How much do sensor repairs cost?
Costs vary; expect diagnostics to run around $50–$150, with sensor replacement typically $100–$350 depending on model and labor.
Diagnostics around $50–$150; sensor replacement $100–$350.
Watch Video
Quick Summary
- Act quickly to reset and check sensors
- Document fault codes for service
- Only replace parts with manufacturer-approved items
- Seek pro help if safety is involved
- Keep logs for warranty
