How Air Filter Regulators Work: A Practical Guide

What is an air filter regulator?

An air filter regulator is a compact pneumatic device that combines two essential functions in one housing: filtering out dust, rust, and water vapor, and regulating the pressure of the compressed air that flows to tools and actuators. According to Air Filter Zone, understanding the fundamentals of how air filter regulators work helps homeowners and DIY enthusiasts select the right unit and maintain clean, reliable airflow in their projects. In practical terms, the device protects sensitive components, reduces moisture-related rust, and stabilizes performance even when your compressor cycles on and off. A well-chosen regulator keeps tools running smoothly and minimizes surprise surges or drops in pressure that can lead to inconsistent results. In this guide, we’ll break down the core parts, explain the roles they play, and offer practical tips you can apply in a home shop, garage, or DIY workshop.

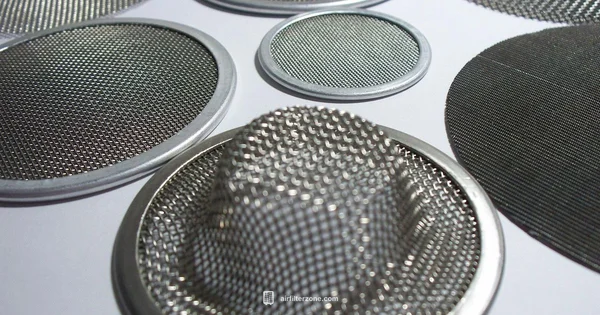

How the filtration element works

The filtration element is the first line of defense in an air filter regulator. Air enters through an external housing where it meets a porous media or membrane designed to trap solid particles, rust, and water droplets. The concept is simple: the media provides a barrier that becomes progressively loaded with contaminants, which is why many units include an auto-drain or a replaceable cartridge. The key idea is to reduce debris before it reaches the regulator’s moving parts, which helps prevent wear and erratic behavior. Filtration also helps protect downstream tools from sediment and moisture that can cause rust, suction problems, or reduced efficiency. When choosing an element, focus on the media type, uniformity of pore size, and ease of replacement. Regular checks prevent clogging, maintain airflow, and extend the life of the regulator and connected equipment.

How the regulator maintains pressure

Behind the front face of the unit, a small diaphragm or piston, held against a spring, forms the core of the pressure-control mechanism. When incoming air pushes on the diaphragm, the regulator vents air to the atmosphere until the downstream outlet reaches the set pressure. The spring provides the reference point; turning the adjustment knob increases or decreases the force the spring applies, which raises or lowers the output pressure. A properly calibrated regulator maintains a stable outlet even as the compressor’s speed varies or the load changes. Some units include compensating features for temperature changes, and many have a built-in gauge to help you monitor the setting. The key takeaway is that regulation is dynamic: the regulator continuously balances flow against the valve’s opening to keep everyone downstream at or near the target pressure.

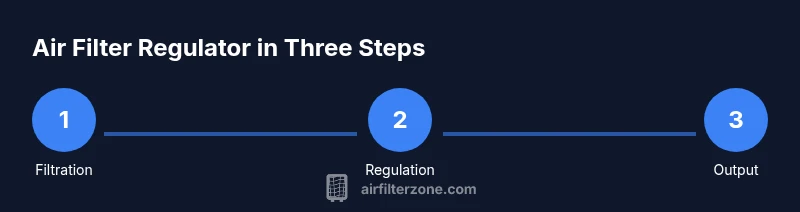

Flow path and typical configurations

In a standard inline setup, air travels from the compressor into the inlet, passes through the filter element, moves into the regulator chamber, and exits at a controlled pressure toward hoses and tools. Placing the filter before the regulator is a common best practice because it protects the regulator’s diaphragms and seats from moisture and grit. Some configurations combine filtration and regulation in a single housing; other setups use separate, stacked components with an intermediate drain. Either approach can work, but the order matters: filtration first, regulation second, followed by any downstream lubrication or isolation valves. This ordering reduces contamination and yields consistent performance across a range of working conditions.

Choosing the right unit for your needs

Your choice depends on how you plan to use compressed air, the tools you run, and the environment of your workspace. For hobbyists, a compact inline regulator with a replaceable filter cartridge is usually sufficient; for more demanding shop workflows, a combo unit with higher filtration efficiency and dual-stage control offers greater reliability. Consider factors such as expected airflow (CFM or l/min), the quality of incoming air (presence of oil or water), and the space available on your wall or bench. Also evaluate maintenance needs: easier cartridge replacement, availability of spare parts, and availability of built-in gauges for quick checks. Read the product manuals and align the regulator’s setpoint with your tools’ recommended operating pressure. When in doubt, choose a unit with a larger filter capacity and a gauge that’s easy to read at a glance.

Installation and startup best practices

Before installing, shut off the compressor and relieve any residual pressure. Mount the filter-regulator unit in a location that allows easy access for maintenance and legible pressure readings. Use appropriate fittings and thread sealant where required, and carefully align connections to prevent leaks. Once connected, slowly resume airflow and verify that air flows through the filter and regulator without unusual noises. Set the regulator to the target pressure and check downstream gauges or tools to confirm that the reading matches expectations. Keep a spare filter cartridge on hand and replace it at the first sign of clogging. Regularly inspect seals for signs of wear and ensure there are no kinks in hoses.

Maintenance, testing, and troubleshooting

Maintenance is the most effective way to keep a air filter regulator performing well. Replace the filter media at the manufacturer’s recommended interval, clean or replace screens, and inspect the regulator diaphragm for signs of wear. Use soapy water to test for leaks around fittings; if bubbles form, tighten joints or re-seat components. If you notice inconsistent pressure or frequent drop-offs under load, verify that the control knob is correctly adjusted and that the downstream piping is not blocked. In environments with high humidity, consider a regulator with a automatic drain to avoid continuous moisture buildup. Document your maintenance steps so you can track wear and schedule timely replacements.

Real-world scenarios and quick tips

In a small home workshop with a portable compressor, an inline regulator with an integrated filter can stabilize airflow to spray guns or nailers. In a garage setting with occasional use, a compact unit placed near the workbench provides clean air without taking up valuable space. For DIY projects requiring precision, use a regulator with a clearly visible gauge and setpoints that you verify with a test run. Quick tips: set the regulator after the filter; use PTFE tape on pipe threads only where appropriate; avoid overtightening fittings; and keep humidity to a minimum by draining condensate routinely.

Common mistakes to avoid and quick tips

• Skipping the filter before the regulator can accelerate wear and cause erratic pressure.
• Over-tightening fittings, which can crack plastic housings or strip threads.
• Neglecting regular filter replacement, leading to clogged flow and unstable pressure.
• Installing the regulator in a position that’s hard to reach for testing or maintenance.
• Ignoring humidity: even a good regulator can fail to protect tools if condensate is allowed to accumulate downstream.
